Combineur / Diviseur de puissance 432 MHz 2 voies quart d’onde
Connecteurs N
| Electrical specifications: | |
| Frequency range: | 430 – 440 MHz (420 – 450 MHz) |
| Nominal Input Impedance: | 50 Ohm |
| Input Return Loss batter then: | -30 dB |
| SWR Across Entire Band: | <1.1 |
| Maximum Power Input | 1000 W |
| Connector: | 3 x “N” |
| Mechanical specifications: | |
| Weight: | 0.6 kg |
| Transportation weight: | 1.7 kg |
Displayed SWR characteristic: From 430 to 440 MHz SWR is less than 1 : 1.1
Smith Chart for 70 cm 2-Way Power Divider:
Extended 70 cm band SWR measurement for America and countries that support 420 MHz – 450 MHz frequency range:

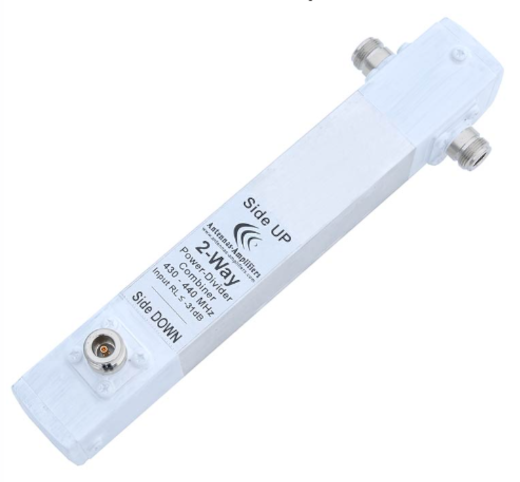

2 Way Power-Divider-Combiner 430 – 440 MHz:
